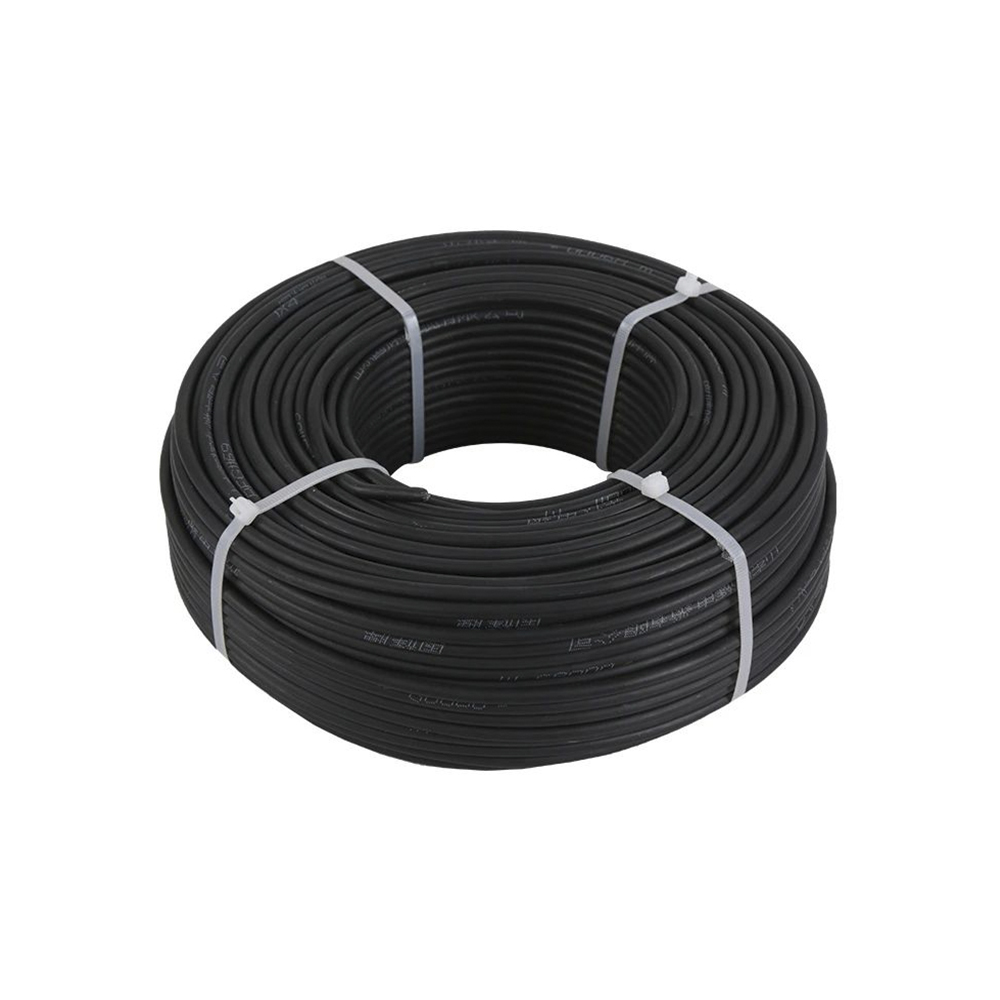

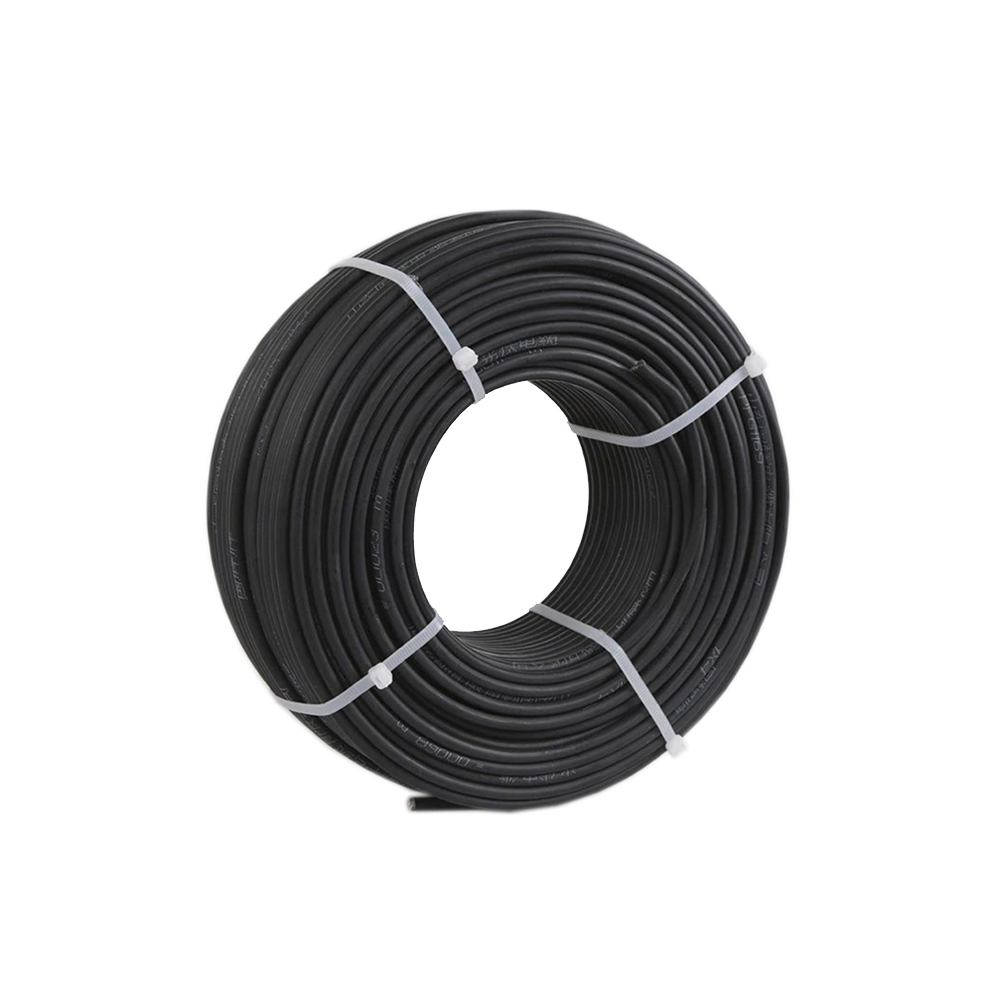

Cablu Solar 6 mm² Negru
Size: 6.0mm²Conductor: Stranded tinned copperStranding: 78/0.295±0.01mmDiameter: 3.0mmPrimary Insulation: XLPEMinimum Average Thickness: 0.7mmColor: WhiteSecondary Insulation: XLPEMinimum Average Thickness: 0.8mmColor: BlackOuter Diameter: 6.1±0.15mmELECTRICAL CHARACTERISTICSVoltage RatingEN 50618/IEC 62930: AC: 1000V; DC: Max.1500VAmbient Temperature: -40°C up to 90°CInsulation Resistance At 20: ≥ 610 MO.kmCurrent carrying capacity AT 30: 72ASpark test: 10000 VACVoltage Withstand: 6500 VACConductor Resistance AT 20: ≤3.39 O/kmMaximum amperage: 72AOTHER CHARACTERISTICSBending RadiusDynamic: ≥ 5 X O.D.Static: ≥ 4 X O.D.Ozone resistant: IEC 60811-403Low smoke emission: IEC 61034-2,light transmittance ≥ 60%Weathering/UL resistance: IEC 62930 Annex EHalogen free: IEC 62821-1 Annex BFlame retardant: IEC 60332-1-2
| Imagine |
Denumire
COD | Model |
Pret |
Cumpara |
|
|
Cablu Solar 6 mm² Negru
CBL6N |
12.23 Lei (cu TVA) |
Indisponibil |

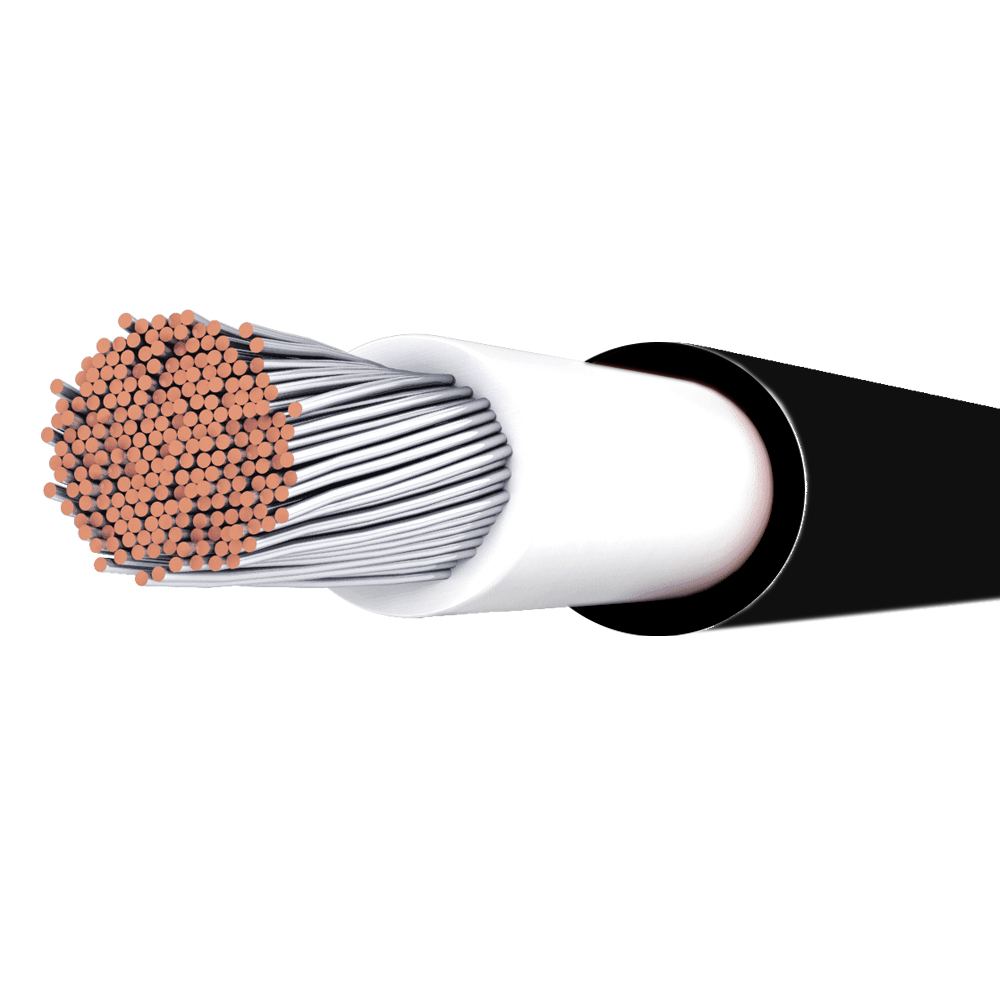

Size: 6.0mm²
Conductor: Stranded tinned copper
Stranding: 78/0.295±0.01mm
Diameter: 3.0mm
Primary Insulation: XLPE
Minimum Average Thickness: 0.7mm
Color: White
Secondary Insulation: XLPE
Minimum Average Thickness: 0.8mm
Color: Black
Outer Diameter: 6.1±0.15mm
ELECTRICAL CHARACTERISTICS
Voltage Rating
EN 50618/IEC 62930: AC: 1000V; DC: Max.1500V
Ambient Temperature: -40°C up to 90°C
Insulation Resistance At 20: ≥ 610 MO.km
Current carrying capacity AT 30: 72A
Spark test: 10000 VAC
Voltage Withstand: 6500 VAC
Conductor Resistance AT 20: ≤3.39 O/km
Maximum amperage: 72A
OTHER CHARACTERISTICS
Bending Radius
Dynamic: ≥ 5 X O.D.
Static: ≥ 4 X O.D.
Ozone resistant: IEC 60811-403
Low smoke emission: IEC 61034-2,light transmittance ≥ 60%
Weathering/UL resistance: IEC 62930 Annex E
Halogen free: IEC 62821-1 Annex B
Flame retardant: IEC 60332-1-2
